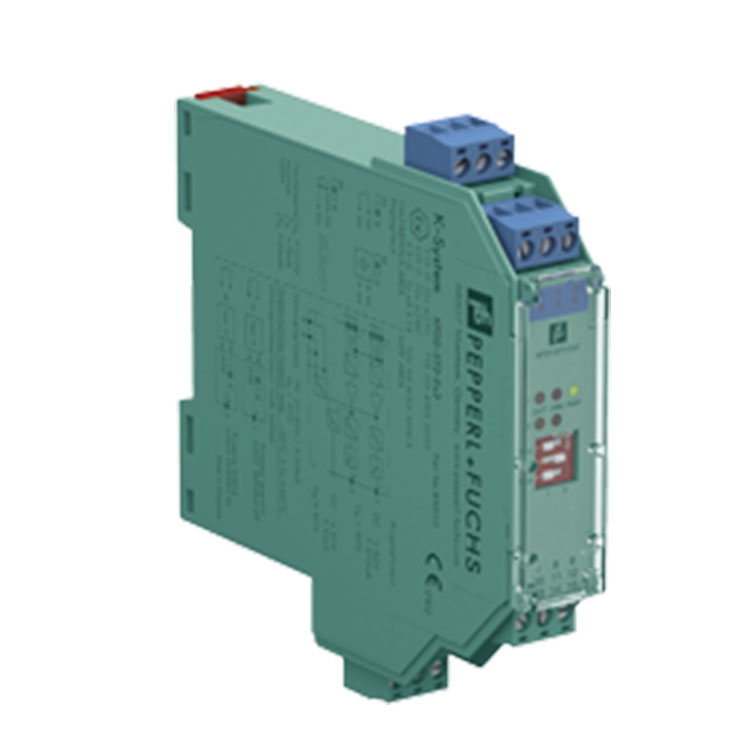

General specifications
Signal type Analog input
Functional safety related parameters
Safety Integrity Level (SIL) SIL 3
Supply
Connection Power Rail or terminals 14+, 15-
Rated voltage Ur 20 … 35 V DC
Ripple within the supply tolerance
Power dissipation 1.8 W
Power consumption 2.4 W
Input
Connection side field side
Connection terminals 1+, 2-, 3 or 5-, 6+
Input signal 0/4 … 20 mA
Open circuit voltage/short-circuit current terminals 1+, 3-: 22.7 V / 38 mA
Voltage drop terminals 5, 6 : ≤ 2.4 V at 20 mA
Input resistance terminals 2-, 3: ≤ 76 Ω
terminals 1+, 3: ≤ 500 Ω (250 Ω load)
Available voltage terminals 1+, 3: ≥ 16 V at 20 mA
Output
Connection side control side
Connection terminals 7-, 8+,9; 10-, 11+,12
Load 0 … 550 Ω at 20 mA
Output signal 0/4 … 20 mA (overload > 25 mA)
Ripple ≤ 50 μA eff
Transfer characteristics
Deviation at 20 °C (68 °F), 0/4 … 20 mA
≤ ± 10 μA incl. calibration, linearity, hysteresis, loads and supply voltage fluctuations
Influence of ambient temperature ≤ 20 ppm/K
Frequency range input in output: bandwidth with 1 mApp signal 0 … 7.5 kHz (-3 dB)
output in input: band width with 1 Vss signal 0.3 … 7.5 kHz (-3 dB)
Settling time 200 μs
Rise time/fall time 20 μs
Galvanic isolation
Input/Output basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Input/power supply basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Output/power supply functional insulation, rated insulation voltage 50 V AC
Output/Output functional insulation, rated insulation voltage 50 V AC
Indicators/settings
Display elements LED
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21:2011
Degree of protection IEC 60529:2001
Protection against electrical shock EN 61010-1:2010
Ambient conditions
Ambient temperature -20 … 60 °C (-4 … 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 200 g
Dimensions 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) , housing type B2
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
General information
Note Both output loads must be connected to ensure complete and correct operation within the technical
specification.
Open circuit of one of the two outputs will not affect the connected output, but would result in a loss of
transmitter supply voltage of up to 0.7 Volt.
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For
information see www.pepperl-fuchs.com.
