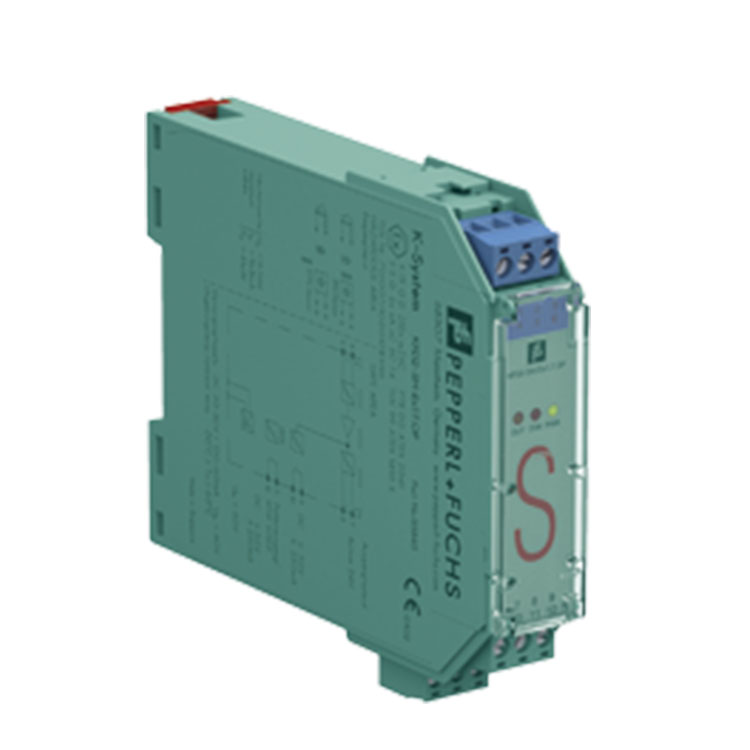

产品阐述
without lead monitoring
General specifications
Signal type Digital Output
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Supply
Connection Power Rail or terminals 14+, 15-
Rated voltage 20 … 30 V DC
Power consumption max. 3.3 W at 45 mA output current
Input
Connection side control side
Connection terminals 7, 8, 9
Input current approx. 3 mA at 24 V DC
Signal level 1-signal: 16 … 30 V DC
0-signal: 0 … 5 V DC
Output
Connection side field side
Internal resistor 272 Ω
Current ≤ 45 mA
Voltage ≥ 11.7 V
Open loop voltage min. 24 V
Connection terminals 1+, 2-, 3- channel 1 ,
terminals 4+, 5-, 6- channel 2
Output rated operating current 45 mA
Output signal These values are valid for the rated operating voltages from 20 … 30 V DC.
Energized/De-energized delay ≤ 20 ms / ≤ 20 ms
Galvanic isolation
Input/Output reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Power supply/Output reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Indicators/settings
Display elements LEDs
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21:2006
Degree of protection IEC 60529:2001
Protection against electrical shock EN 61010-1:2010
Ambient conditions
Ambient temperature -20 … 50 °C (-4 … 122 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 150 g
Dimensions 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-Type Examination Certificate ZELM 00 ATEX 0024
Marking Ex-Hexagon II (1)G [Ex ia Ga] IIC
Ex-Hexagon II (1)D [Ex ia Da] IIIC
Ex-Hexagon I (M1) [Ex ia Ma] I
Output Ex ia
Voltage 28 V
Current 110 mA
Power 770 mW (linear characteristic)
Supply
Maximum safe voltage 40 V (Attention! The rated voltage can be lower.)
Input
Maximum safe voltage 60 V (Attention! The rated voltage can be lower.)
Collective error message
Maximum safe voltage 40 V (Attention! The rated voltage can be lower.)
Certificate TÜV 02 ATEX 1820 X
Marking Ex-Hexagon II 3G Ex nA IIC T4 Gc
Galvanic isolation
Input/Output safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/power supply safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-26:2007 , EN 50303:2000
International approvals
IECEx approval
IECEx certificate IECEx TUN 04.0001
IECEx marking [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
Accessories
Optional accessories – power feed module KFD2-EB2(.R4A.B)(.SP)
– universal power rail UPR-03(-M)(-S)
– profile rail K-DUCT-BU(-UPR-03)
